Workspace overview


GPS Tracking page allows to access most common tracking features and, monitor object location on map, get detailed information: speed, coordinates, address, movement history, events, reports and more.

GPS Tracking page overview

GPS Tracking page overview

Click to enlarge
  1. Top panel - this panel provides access to: Help, Settings, Show point, Search address, Reports, Logbook, DTC, Object control, Image gallery and Chat.
  2. User account panel - this panel provides access to: Language selection, Billing, My account, Mobile version and Log out.
  3. Left panel - this panel provides access to: Object list, Events, Places (Markers, Routes and Zones) and History.
  4. Object details panel - all important information about selected object is show in this panel: current location, sensors, services and etc.
  5. History panel - panel which provides access to history and detailed route information, together with exporting tools.
  6. Map controls
    • Map zoom control - changes map zoom level.
    • Objects - enable/disable object visibility.
    • Labels - enable/disable object labels.
    • Markers - enable/disable marker visibility.
    • Routes - enable/disable route visibility.
    • Zones - enable/disable zone visibility.
    • Clusters - useful feature for those who has large number of objects and markers. Clusters split markers and objects into groups, which according to map zoom level will reveal content inside of it.
    • Street view - enable/disable street view.
    • Live traffic - shows status of traffic on map (available only with Google Maps).
    • Fit objects on map - sets map zoom level to fit all objects.
    • Ruler - measures distance between points.
    • Measure area - measures area.
  7. Route controls - enable/disable loaded history route features.
  8. Maps - allows to change currently used map: OSM, Google, Bing, Mapbox, Yandex or any other custom TMS or WMS maps.
  9. Object details - the most important information about selected object is show in this popup: current location, sensors, services and etc.

Top panel

Top panel is used to quickly access sections (Settings, Reports and Object control,Chat and other).

Menu GPS Tracking
  1. About - allows to check which version of software you are currently using.
  2. Help - redirects to this manual.
  3. Show point - focus map on entered coordinates.
  4. Search address - helpful and easy to use tool for searching address on map.
  5. Reports - allows to create various reports.
  6. RFID and iButton logbook - review RFID and iButton activity.
  7. DTC - diagnostic trouble codes.
  8. Object control - allows to send SMS and GPRS commands to GPS device.
  9. Image gallery - allows to receive images with location from GPS devices.

Left panel

Objects list tab allows to view available objects, find them on map, view object route history and edit object settings.

Left panel

Left Panel

Click to enlarge
  1. Objects tab - view current objects status.
  2. Events tab - history of events can be viewed (overspeending, entering or leaving zones and etc.).
  3. Places tab - allows to create, edit and delete zones and markers.
  4. History tab - view history, create reports, export them to various formats etc.
  5. Search - allows to find objects by name.
  6. Reload - reloads objects list.
  7. Add object - is under development
  8. Visibility checkbox - turns on or off objects visibility on map.
  9. Follow checkbox - centers marked object in the middle of the screen every time GPS device has refreshed its position, if multiple objects selected - map zooms the way that all of them remain visible.
  10. Object information - object name, date and time of last received location.
  11. Speed indicator - shows current object speed.
  12. Ignition (ACC) indicator - shows ignition state. Ignition (ACC) sensor should be configured in order to use this feature.
  13. GPRS indicator - shows GPRS and GPS status.
    • Grey icon - no GPRS and GPS.
    • Orange icon - no GPS signal.
    • Green icon - GPRS and GPS are OK.
  14. Quick access - allows to see object history, control objects using commands and edit object settings.

Object details panel

This panel allows to view more details about selected object. Panel only appears if Objects, Events or History tab is selected in left panel.

Object details panel

  • Altitude - object height over sea level.
  • Angle - current object angle (0 - 360° clockwise movement).
  • Nearest zone - distance from current point to nearest created zone (learn more about zones).
  • Odometer - object odometer readings.
  • Plate - predefined object plate number).
  • Position - coordinates of current object location.

Bottom panel

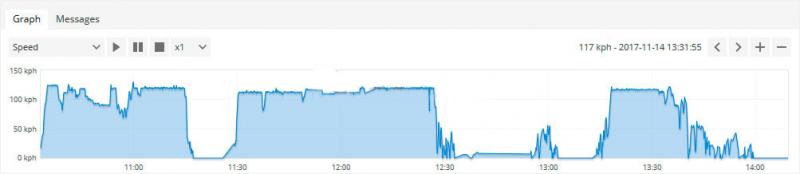

Bottom panel displays history graph and location messages table.


Bottom panel

To remove multiple objects do next:

  • Mark objects by clicking checkbox on the left.Proceed action in action menu located at the bottom of settings window.
  • Choose Delete.
  • Confirm action which will be applied to all selected objects.

Learn more about features in history section


Map

Map shows GPS tracker location ). To see more details about object, such as address, speed, altitude, angle, time and more, click on object in object list panel.
